Modular design
Pre-engineered sections recombine quickly when your layout changes.
Products / Roller Conveyor
Modular heavy-duty transport
Durable, modular roller conveying for cartons and rigid packaged goods —the flexible backbone that ties your full sorting layout together.
Product overview
Our roller conveyors use durable steel or plastic rollers arranged in modular sections that combine into straight runs, curves, merges, diverts and elevation changes. Heavy-duty construction handles cartons and rigid packaged goods reliably, while the modular design makes layout changes quick and inexpensive.
Key features
Pre-engineered sections recombine quickly when your layout changes.
Rigid frame and rollers sized for cartons and packaged cargo.
Motorized or gravity sections depending on layout and slope.
Curved sections, merge and divert units for complex flows.
Sealed bearings and simple construction keep upkeep minimal.
Connects sorter infeed, outfeed and storage areas end to end.
| Width | 500 –1,200 mm (per project) |
|---|---|
| Speed | 0.2 –1.5 m/s (adjustable) |
| Load per roller | Up to 60 kg (per project) |
| Roller type | Steel / plastic, motorized or gravity |
| Sections | Straight, curve, merge, divert, incline |
| Applications | Cartons, boxes, rigid packaged goods |
| Control | Frequency drive, PLC / fieldbus interface |
| Certifications | CE, ISO 9001 |

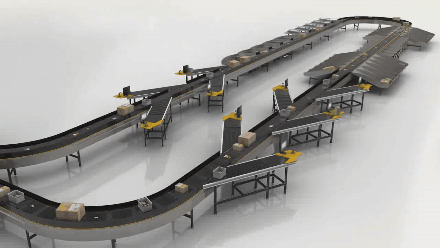

Live operation
Related products
Gentle conveying for soft bags and mixed parcels.
Compact divert sorting in dense layouts.
Straight-line sorting spliced into the flow.
Send your flow diagram —we lay out the roller and belt sections and quote within 24 hours.
FAQ
Standard widths from 500 mm to 1,200 mm, matched to your carton and tote dimensions.
Operating speeds of 0.2—.5 m/s and up to 60 kg per roller, with heavy-duty frames for continuous shifts.
Yes. Zero-pressure accumulation sections and photo-eye zones keep cartons spaced and avoid damage in buffer areas.
They handle infeed, merge, take-away and buffer duties around cross-belt, narrow belt and put-wall sorters —with PLC and WCS control integrated.
Send us your requirement —an engineer replies with a technical answer within 24 hours.
Get started
Send us your parcel volume, package mix and floor plan —our engineers reply with a tailored layout and quotation within 24 hours.
